WALKING BEAM FURNACE MSL

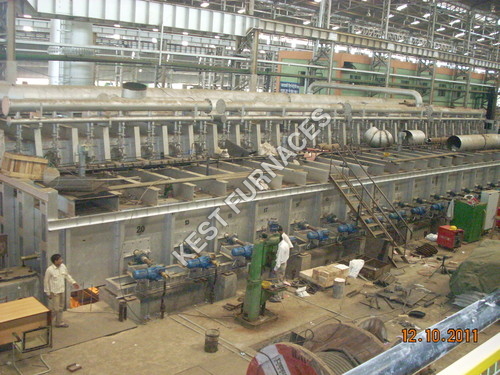

Kest Furnaces Pvt Ltd. A team of technocrats designed, manufactured and installed 60MT/Hr Walking Beam type Tube annealing furnace for M/S. Maharashtra Seamless Ltd. Mangaon, Near Mumbai Maharashtra
The furnace commissioned successfully and are under commercial production for last 15 days
The useful length of the furnace is suitable to handle for single 30Meter long tubes which are longest in Asia. The capacity of the furnace is 60MT/Hr throughput
The Walking Beam mechanism is working with the help of robust hydraulically operated cylinders with accessories, highly efficient combustion equipments, equipped with waste heat recovery recuperator, specially designed flue duct and self supported chimney. The chimney height is 40 Meter and fully insulated up to 40 Meter for chimney long life
We used special shape refractory for furnace hearth and special shape blocks for water cooled rollers to minimize hot gas leakage
We also designed alloy steel walking beam to handle tubes up to 8â€ size and have low alloy cast steel openings for walking beam support tubes to safeguard refractory.
